after the process of casting/pouring different alloys (e.g. Ca-Si / Calcium-Silicon Alloys).
During the process of casting/pouring Ca-Si (e.g. Ca-Si / Calcium-Silicon Alloys), slag is being gathered on the bottom and around the perimeter of the ladle. Since hardened slag is very difficult to remove from the ladle, usually lining of the ladle should be restored after few cycles of pouring/casting (4-6 cycles).

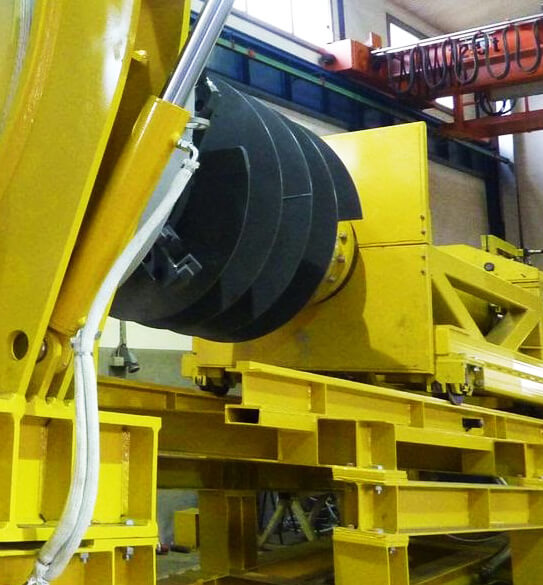

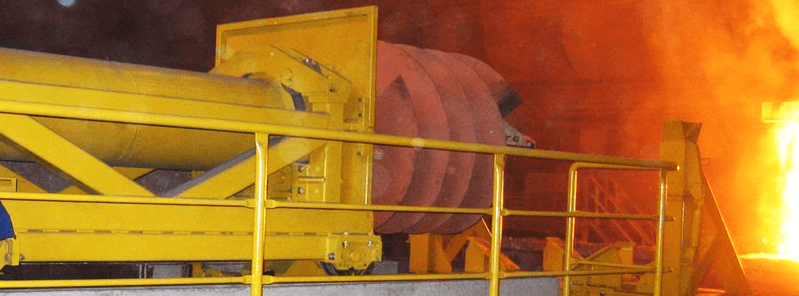

In principle LCM is not working as regular drilling machine, since the drilling-cutting head actually scrapes the slag from the bottom and from the perimeter of the ladle. The spiral, which serves as screw conveyor, is positioned right behind the cutting head to clean the material from the ladle.
Read more
Concept
Define a concept of ladle cleaner.
Plan
Make a plan based on needs and demands of costumer.
Design
Design a functional machine based on plan.
Development
Build a machine in our facilities and do test runs.
Deploy
Deploy machine on site and finish project.

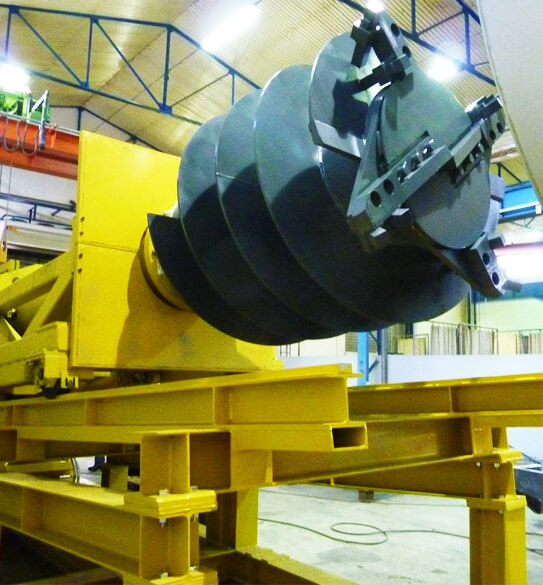

Due to very hard working conditions (very high temperature) cutting head and the spiral could get used very quickly. To solve the issue, cutting head was designed in a way to simply and cost-effectively modify or replace knives (scrapers). Life span of screwing conveyor is around 6 (12) months.
Read more

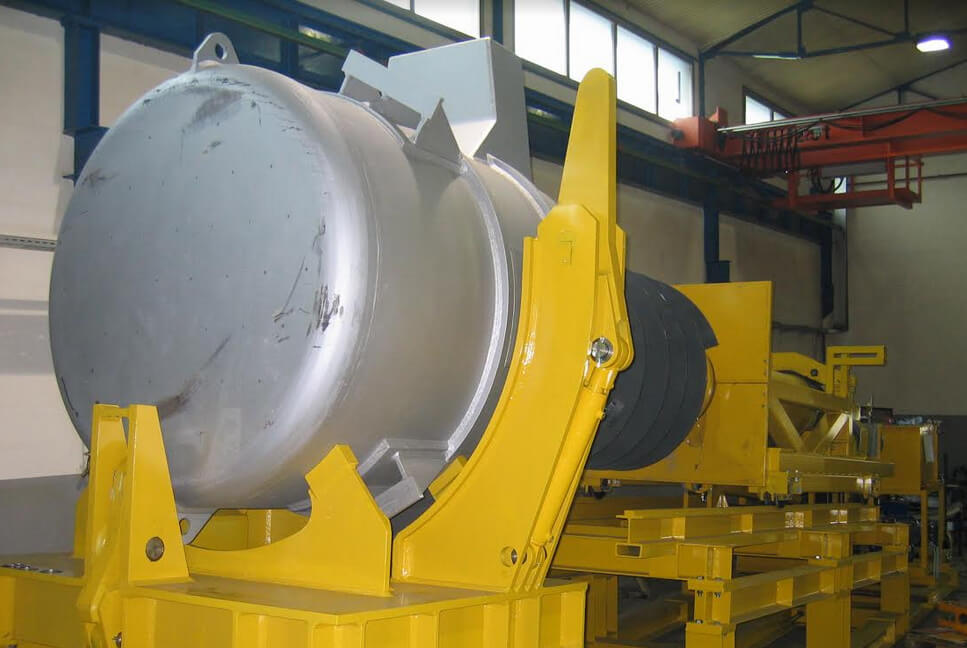

We customize every Ladle cleaning machine for a customers needs and to specific ladle shape (different ladle dimensions: diameters, depths, cylindrical or conical shapes).

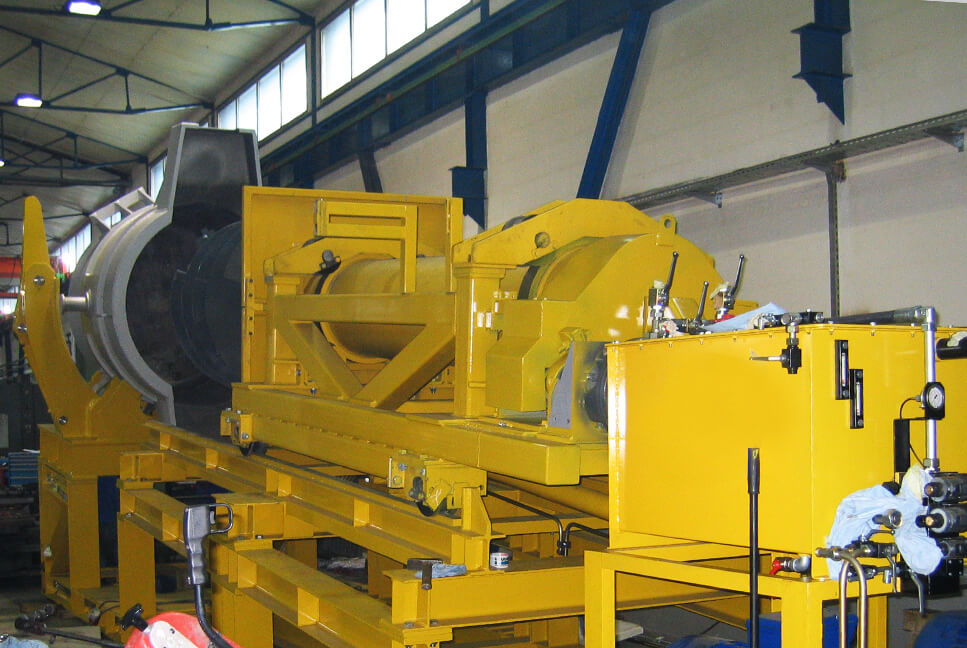

For every ladle shape also a specific supporting stucture should be designed.
Dimensions: 2,4 m x 4m x (10 to 12m)
Weight: ~20 tons
Drill diameters: depending on the ladle (cca 1200 to 1450mm)
Power supply: depending on the ladle ~ 100kW
Life span of screwing conveyor: from 6 up to 12 months
Operating conditions: Slag must still soft
Device production time: 6 - 8 month
Every machine is constructed on specific demands and needs of costumer.
We build and test machine in our facilites and then deploy costumers site.
Replaceive knives ensure you longer durability of machine
Machine is build to work in thoughest conditions.
Machine instructions are clear to ensure safe work and maintanance.
With our support you can maintain your machine to work properly.
Our company is specialized in building industrial machine for different industries, such as metallurgical industry. We offer professional and quality solutions. We are responsible for work process and final results. With great cooperation with clients we make their/our projects to life.
